Deskripsi
Totalstation Laser STEC Armor3
Dapatkan presisi tak tertandingi dengan Total Station STEC Armor 3 Akurasi sudut 2”, EDM dengan jangkauan non prisma hingga 1500m.Jangan lewatkan kesempatan ini untuk memiliki perangkat andal dengan harga terjangkau. Beli sekarang dan bangun kesuksesan survei Anda dengan Total Station Terbaru
Lihat Juga Semua Produk : Total Station Laser
Fitur-Fitur Totalstation Laser STEC Armor3 :
Akurasi Tinggi
Totalstation Laser STEC Armor3 memiliki akurasi 2″ yang mendukung pembesaran 30x dan EDM yang ditingkatkan dengan jangkauan non prisma 1500m.

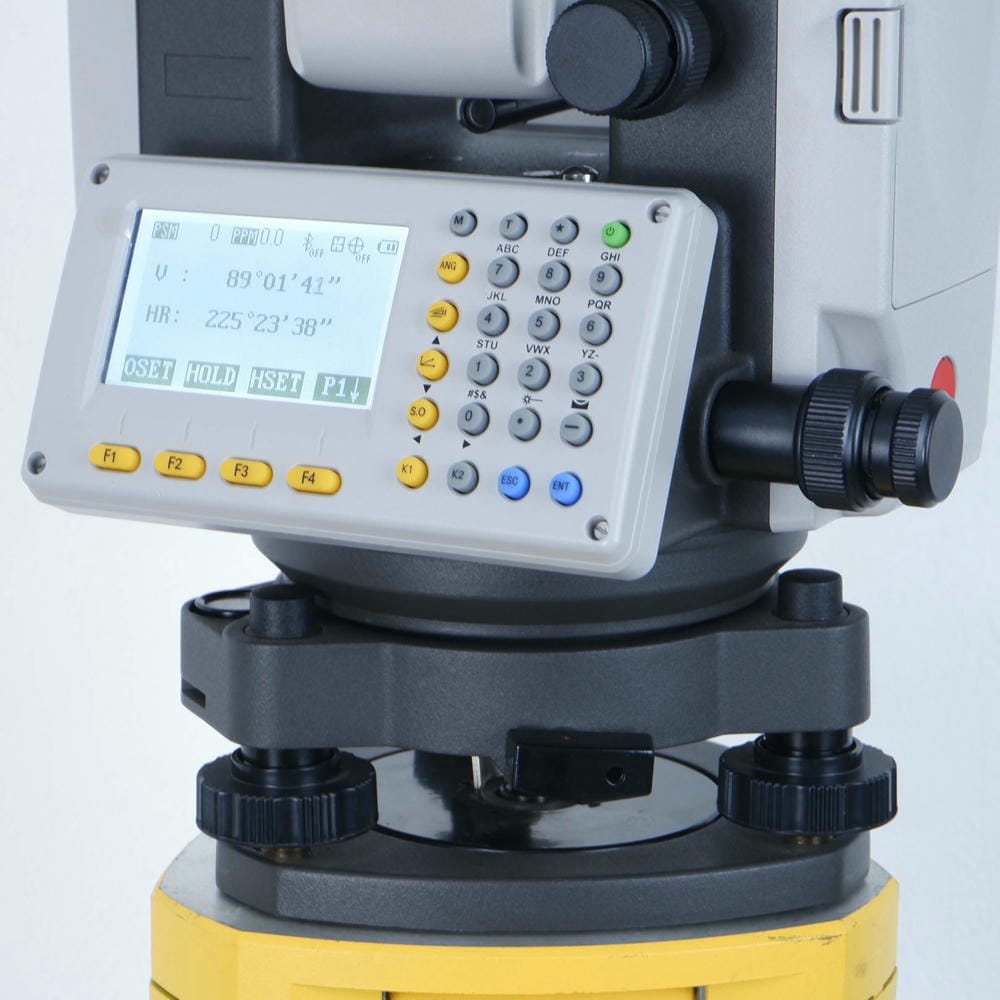

Layar LCD Mudah dibaca
Layar LCD yang sederhana memudahkan pengguna dalam membacanya.
Konektivitas yang mudah
Konektivitas menggunakan USB dan Bluetooth memudahkan dalam transfer data.
Download BROSUR : Totalstation Laser STEC Armor3
Spesifikasi Totalstation Laser STEC Armor3 :
lihat selengkapnya| Model | Armor 3 |
|---|---|
| Distance Measurement | |
| Range | |
| Reflectorless Prism |
15OOm 5OOOm |
| Accuracy | |
| Reflectorless Prism Sheet |
3+2ppm 3+2ppm 3+2ppm |
| Measurement Time | 1.2s in fine 0.2s in tracking |
| Atmospheric Correction | Manual input, Auto correction |
| Prism Constant | Manual input, Auto correction |
| Temperature Correction | Manual input, Auto correction |
| Distance Reading | Max:99999999.999m Min: mm |
| Angle Measurement | |
| Accuracy | 2″ |
| Method | Absolute, continuous |
| Disk Diameter | 79mm |
| Detection Method | V: Dual,H: Dual |
| Angle Reading | Min: 1″ |
| Telescope | |
| Image | Erect |
| Tube Length | 152mm |
| Effective Aperture | 45mm (EDM 47mm) |
| Magnification | 30x |
| Field Of View | 1°30′ |
| Resolving Power | 3″ |
| Minimum Focus Distance | 1.5m |
| Reticle Illumination | Not adjustable |
| Operation System | |
| Memory | 16000 points |
| Compensator | |
| System | Liquid, Dual axis |
| Working Range | ±6′ |
| Accuracy | 1″ |
| Plummet | |
| Laser Plummet (Default} | |
| Accuracy Laser Brightness Wave length Laser Class Laser Power |
±1.Smm @l.Sm 5 levels adjustable 635nm Class 2 O.5mW |
| Optical Plummet (Optional} | |
| Image Magnification Focusing Range Field Of View |
Erect 3x O.5m – ∞ 5″ |
| Keyboard and Display | |
| Keyboard Display Resolution Position |
Alphanumeric 28 Keys Black & White LCD 160*96 dpi Face 1,Face 2 |
| Interface | |
| Data Interface | USB Flash Disk |
| Battery | |
| Type Voltage Operating Time |
Lithium 7.4V 8 hours |
| Vial | |
| Plate Vial Circular Vial |
30″/2mm 8’/2mm |
| General | |
| IPRate Temperature Range Dimension Weight |
IP54 -20°c – +50°c 206*200*353mm 6.0kg |
